Seco

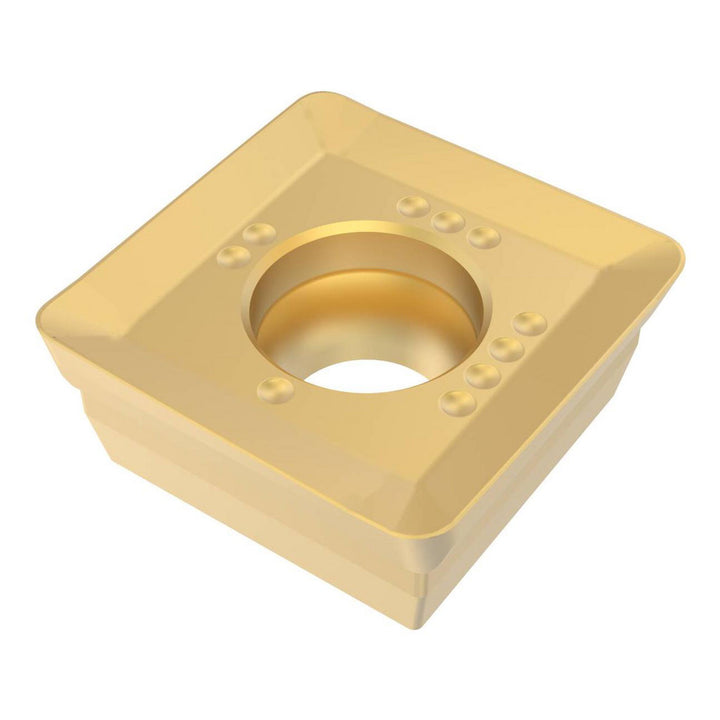

SONX09T304TR-ME06 Solid Carbide Insert, Grade F40M, TiAlN - Seco 74066081
MFR# 74066081ISO/ANSI# SONX09T304TR-ME06Cat# SONX09T304TR-ME06Series SONX-09
$19.88List $25.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 74066081 is a SONX09T304TR-ME06 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeSONX09T304TR-ME06
Chip breakerME06
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityR220.99-09
Cutting edge effective length0.3760
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree90
Inscribed circle0.3760
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T304
Insert styleSONX
Iso codeSONX09T304TR-ME06
Length0.3760
Length range0.3200 to 0.4000
Manufacturers catalog numberSONX09T304TR-ME06
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle22
Relief angle15.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3760
