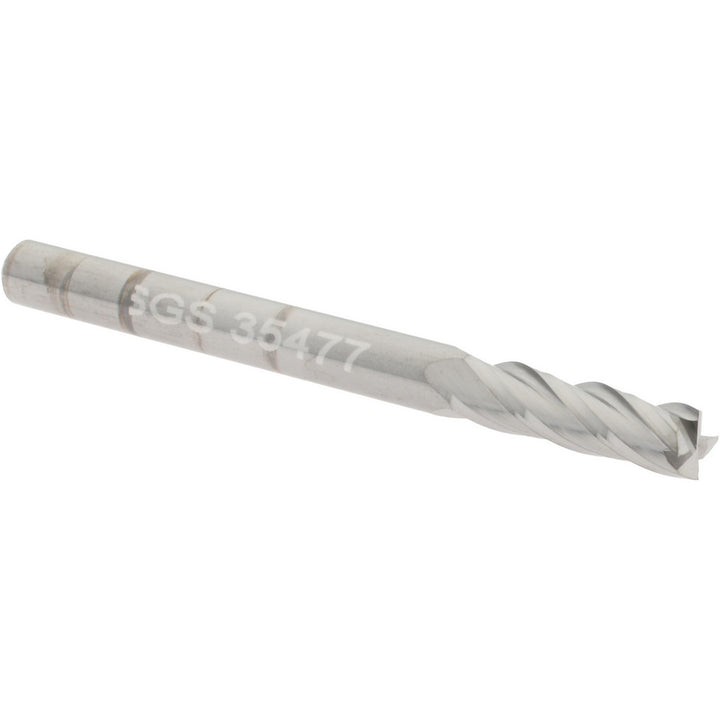

1/8" 4-Flute Solid Carbide Square End Mill - SGS 35477

SGS

1/8" 4-Flute Solid Carbide Square End Mill - SGS 35477

MFR# 35477Series 54

$14.64List $18.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide

Description

The SGS 35477 is a 1/8 4-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 7/16 length of cut, 1-1/2 overall length. Series 54.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in7/16
Length typeRegular
Material gradeMicrograin
Mill diameter in1/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in1-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/8
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
