11/32" Solid Carbide Drill Bit, Ti-NAMITE-A, 150° point - SGS 58080

SGS

11/32" Solid Carbide Drill Bit, Ti-NAMITE-A, 150° point - SGS 58080

MFR# 58080Series 103

$121.09List $155.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/32
Flutes3
CoatingTi-NAMITE-A

Description

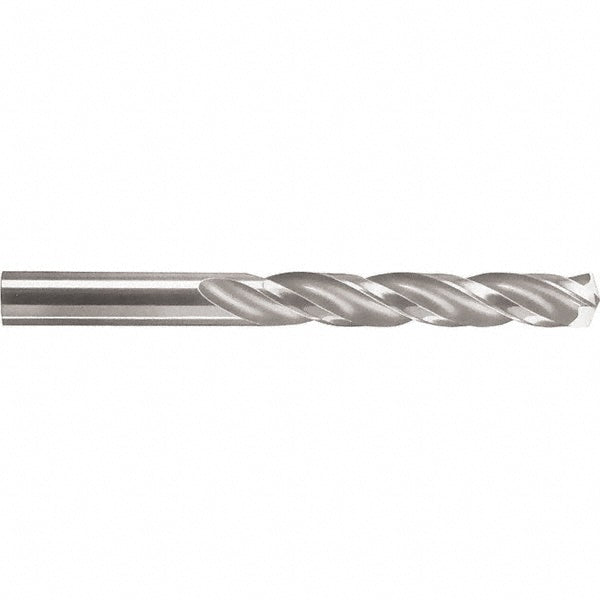

The SGS 58080 is a 11/32" Solid Carbide drill bit with a Ti-NAMITE-A finish, 150° point. Suited for cast iron, hardened steel, non-ferrous metal, steel. 2-1/2 flute length, 4 overall length. Series 103.

Specifications

Coating finishTi-NAMITE-A
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeGeneral Purpose
Drill bit materialSolid Carbide
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees150
Flute by diameter ratio5xD
Flute length in2-1/2
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth in2
Number of flutes3
Overall length in4
Point typeStandard
Primary workpiece materialCast Iron; Hardened Steel; Non-Ferrous Metal; Steel
Shank diameter in11/32
Shank length in1-1/2
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6539
Web configurationTapered
Web thinningWeb-Thinned
