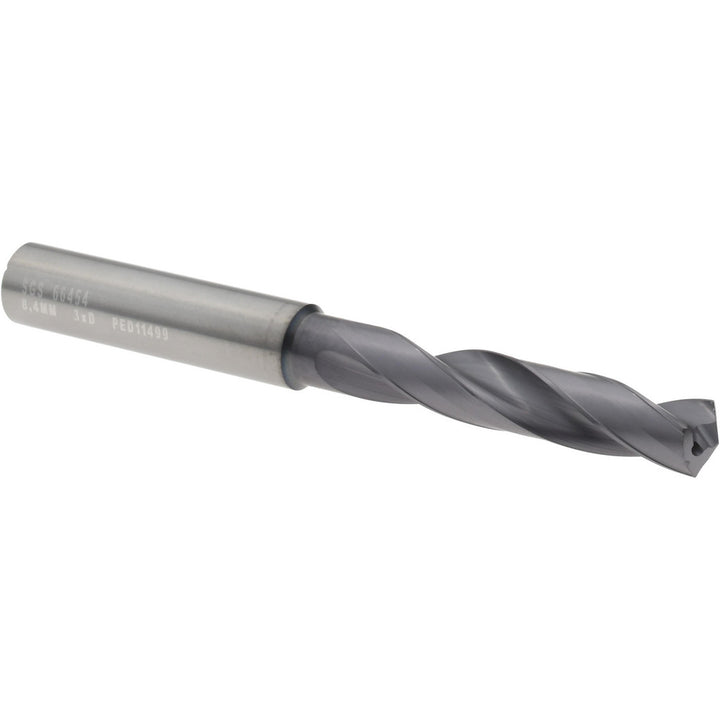

0.3307" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 66454

SGS

0.3307" Solid Carbide Screw Machine Drill Bit, Ti-NAMITE-X, 135° point - SGS 66454

MFR# 66454Series 142P

$183.65List $235.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTi-NAMITE-X

Description

The SGS 66454 is a 0.3307" Solid Carbide Screw Machine drill bit with a Ti-NAMITE-X finish, 135° point. Suited for universal. 2-5/32 flute length. Series 142P.

Specifications

Coating finishTi-NAMITE-X
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.00028 to +0.00098 in; +0.007 to +0.025 mm
Drill bit gradeHigh Performance
Drill bit size0.3307
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0685
Flute by diameter ratio3xD
Flute length in2-5/32
Flute typeSpiral
Material gradeMicrograin
Maximum drilling depth1.8504
Number of flutes2
Number of margins4
Overall length3.5039
Point typeStandard
Primary workpiece materialUniversal
Shank diameter0.4700
Shank length1.5748
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6537
Spiral typeRegular
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
