SGS

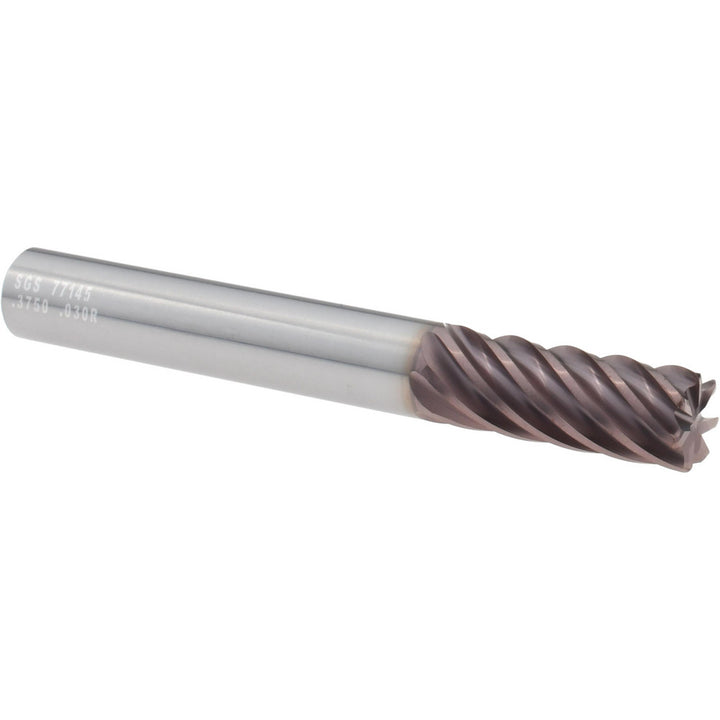

3/8" 7-Flute Solid Carbide Corner Radius End Mill, TM - SGS 77145

MFR# 77145Series 77C

$85.60List $109.78 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes7

MaterialSolid Carbide

CoatingTM

Description

The SGS 77145 is a 3/8 7-flute Solid Carbide (Micrograin) corner radius end mill with a TM finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 15/16 length of cut, 3 overall length. Series 77C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTM

Coolant throughNo

Corner radius0.0300

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in15/16

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeFinishing

Mill diameter in3/8

Mill diameter tolerance-0.0016/0.0000 in

Number of flutes7

Overall length in3

Overall length tolerance0.0620/-0.0620 in; 0.0620/-0.0620 mm

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
