Skoda
Lathe Center - Skoda 310105
MFR# 310105
$191.29List $209.76
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

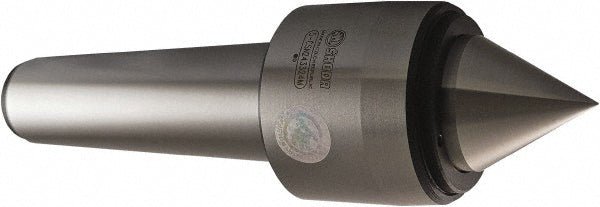

The Skoda 310105 is a steel lathe center.
Specifications
Accuracy0.000200
Bearing typeRoller
Carbide tipped pointNo
FeaturesComplete Protection of Bearings Form The Ingress of Coolant; Dirt or Swarf; Heavy-Duty Ball Thrust Bearing; Prevents Loss Of Lubricant; Rotating Spindle; Two Specially Designed Adjustable Needle-Roller Bearings
Gage line diameter0.4750
Head diameter1.3385
Head length1.5800
Included angle60
Load capacity200.00lb
MaterialSteel
Maximum rpm6000
Maximum workpiece weight lb200.00
Overall length4.4881
Point diameter1.3385
Point length0.8464
Point styleStandard
Shank diameter in5/8
Shank length in2-1/16
Shank typeMorse Taper
Taper sizeMT1
Tip diameter0.6690
Tip length in27/32
