Skoda

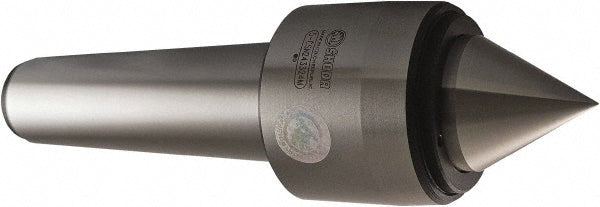

Lathe Center - Skoda 310110
MFR# 310110
$217.41List $234.35
Save 7%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Skoda 310110 is a steel lathe center.
Specifications
Accuracy0.000200
Bearing typeRoller
Carbide tipped pointNo
FeaturesComplete Protection of Bearings Form The Ingress of Coolant; Dirt or Swarf; Heavy-Duty Ball Thrust Bearing; Prevents Loss Of Lubricant; Rotating Spindle; Two Specially Designed Adjustable Needle-Roller Bearings
Gage line diameter0.7000
Head diameter1.4173
Head length1.4100
Included angle60
Load capacity748.00lb
MaterialSteel
Maximum rpm6000
Maximum workpiece weight lb1450.00
Overall length4.9212
Point diameter1.4173
Point length in1
Point styleStandard
Shank diameter in7/8
Shank length2.5000
Shank typeMorse Taper
Taper sizeMT2
Tip diameter0.8660
Tip length in1
