Skoda

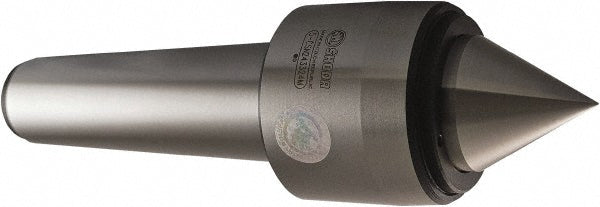

Lathe Center - Skoda 310120
MFR# 310120
$325.25List $408.27
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Skoda 310120 is a steel lathe center.
Specifications
Accuracy0.000200
Bearing typeRoller
Carbide tipped pointNo
FeaturesComplete Protection of Bearings Form The Ingress of Coolant; Dirt or Swarf; Heavy-Duty Ball Thrust Bearing; Prevents Loss Of Lubricant; Rotating Spindle; Two Specially Designed Adjustable Needle-Roller Bearings
Gage line diameter1.2310
Head diameter2.1653
Head length2.2800
Included angle60
Load capacity2860.00lb
MaterialSteel
Maximum rpm4000
Maximum workpiece weight lb2860.00
Overall length7.6377
Point diameter2.1653
Point length1.4763
Point styleStandard
Shank diameter in1-1/2
Shank length3.8750
Shank typeMorse Taper
Taper sizeMT4
Tip diameter1.3770
Tip length1.4763
