SPI

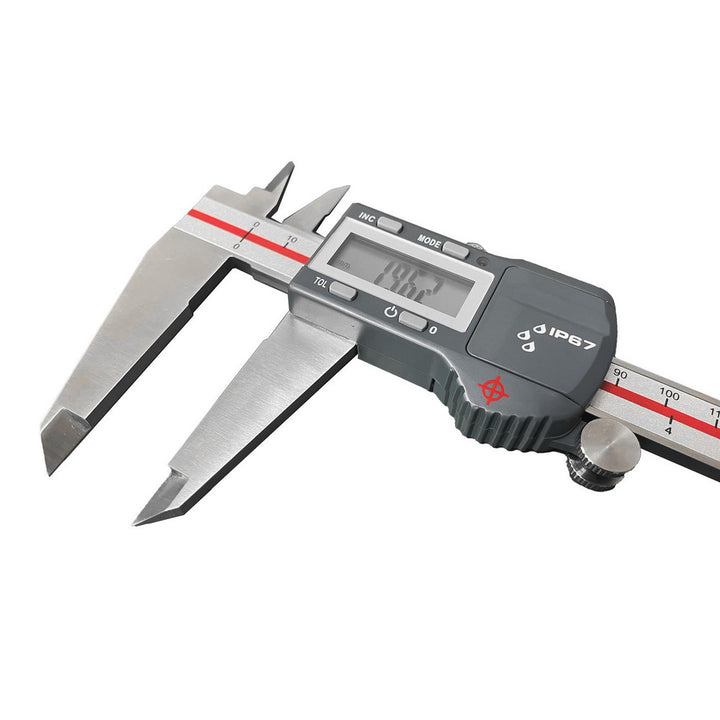

12.0000" Caliper - SPI 10-1604-800
MFR# 10-1604-800Series Caliper
$190.03List $323.40
Save 41%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The SPI 10-1604-800 is a 12.0000" stainless steel caliper. Meets ASME B89.1.14.
Specifications
ApplicationMeasuring Distances between Grooves; Measuring Hard Materials; Measuring Stepped Workpieces; Measuring Wall Thicknesses
Batteries includedYes
Battery chemistryLithium
Battery size3V
CalibratedYes
Caliper materialStainless Steel
Data outputNo
FinishHardened Stainless Steel
IncludesBattery
Includes depth measurement rodYes
Includes inside diameter jawsYes
Ip ratingIP67
Jaw adjustment typeThumb Wheel
Jaw length (mm)60.00
Jaw materialStainless Steel
Jaw styleInside; Outside
Jaw thickness (mm)3.55
Jaw typeStandard
Maximum measurement12.0000
Number of batteries2
Offset jawNo
Overall length15.3100
Power sourceBattery
StandardsASME B89.1.14
Traceability certification includedYes
