SPI

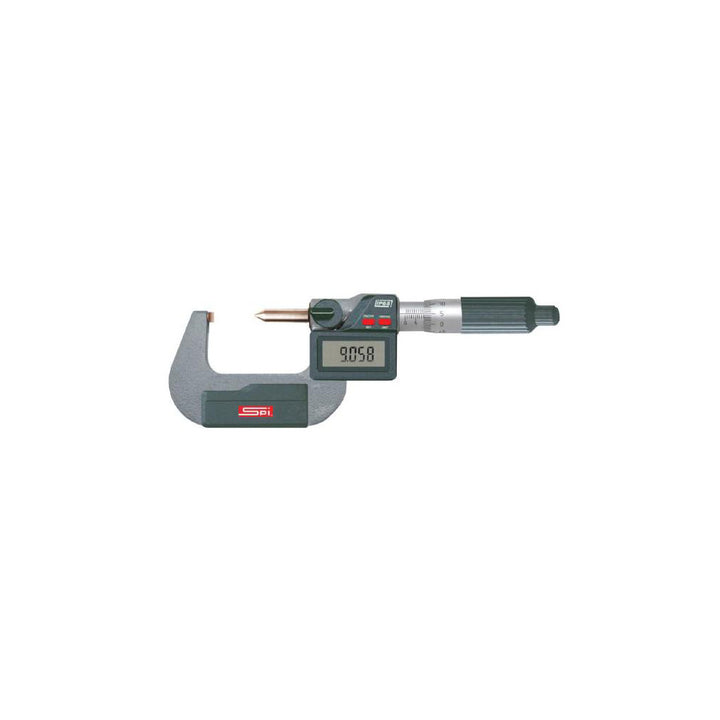

Micrometer - SPI CMS220519026
MFR# CMS220519026
$337.43List $514.85
Save 34%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The SPI CMS220519026 is a micrometer. Meets ASME 89.1.13.
Specifications
Accuracy.0001"
Anvil materialCarbide
Anvil point length3mm
Batteries includedYes
Battery chemistryLithium
Battery size3V CR2032
CalibratedYes
Data outputYes
Digital counterYes
Graduation0.0001
IncludesPlastic Box
Lock nut typePositive
Maximum measurement1.00
Minimum measurement0
Number of batteries1
Operation typeElectronic
Resolution0.000
Rotating spindleYes
Spindle diameter6.5mm
Spindle materialSUS420F
Spindle point angle60
Spindle point length5mm
StandardsASME 89.1.13
Thimble typeRatchet
Throat depth24mm
