Sumitomo

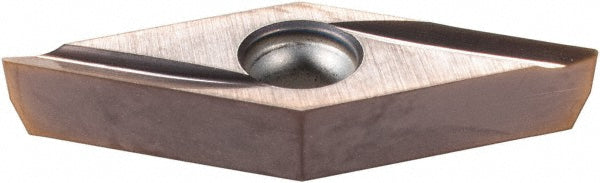

VCGT110302R-FX Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 10HM030
MFR# 10HM030ISO/ANSI# VCGT110302R-FXSeries VC
$14.63List $18.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 10HM030 is a VCGT110302R-FX solid carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi codeVCGT220.5RFX
Chip breakerRFX
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0078
Cutting directionRight Hand
Hole diameter0.1340
Included angle35.0
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.4370
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code220.5
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT110302R-FX
Manufacturer gradeAC530U
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeG
