Sumitomo

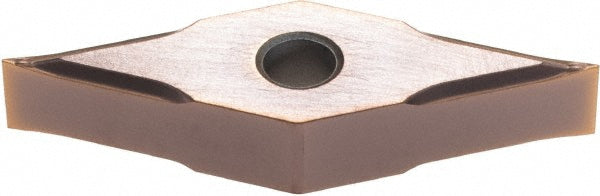

VNGG160401N-SU Carbide Insert, Grade AC520U, TiAlN - Sumitomo 10HWAEY
MFR# 10HWAEYISO/ANSI# VNGG160401N-SUSeries VN
$19.21List $24.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC520U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 10HWAEY is a VNGG160401N-SU carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Chip breakerESU
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code330
Insert styleVNGG
Insert thickness in3/16
Iso codeVNGG160401N-SU
Manufacturer gradeAC520U
RakePositive
Rake angle13
Relief angle0
Secondary workpiece materialStainless Steel; Superalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeG
