Sumitomo

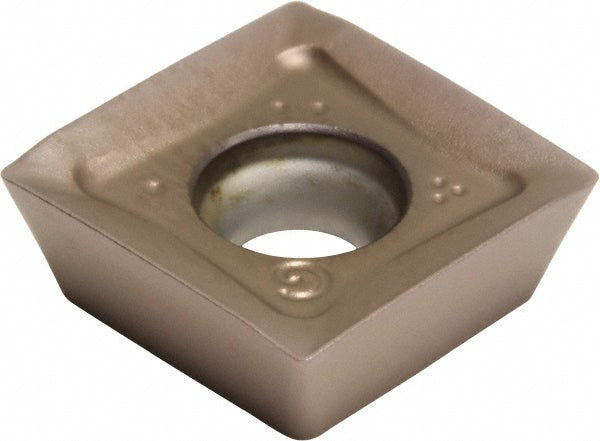

SOMT120408PDERG ACP300 Solid Carbide Insert, Grade ACP300 - Sumitomo 14HB919
MFR# 14HB919ISO/ANSI# SOMT120408PDERG ACP300
$19.28List $24.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeACP300
MaterialSolid Carbide
Description
The Sumitomo 14HB919 is a SOMT120408PDERG ACP300 solid carbide indexable insert, grade ACP300. Suited for stainless steel, steel.
Specifications
Chip breakerG
Coating processPVD
Corner radius0.0315
Insert materialSolid Carbide
Insert shapeSquare
Insert size120408
Insert size code1204
Insert styleSOMT
Iso codeSOMT120408PDERG ACP300
Length0.5000
Length range0.5000 to 0.6000
Manufacturer gradeACP300
Primary workpiece materialStainless Steel; Steel
StandardsISO
Thickness0.1874
Thickness range0.1850 to 0.2000
Width0.5000
