Sumitomo

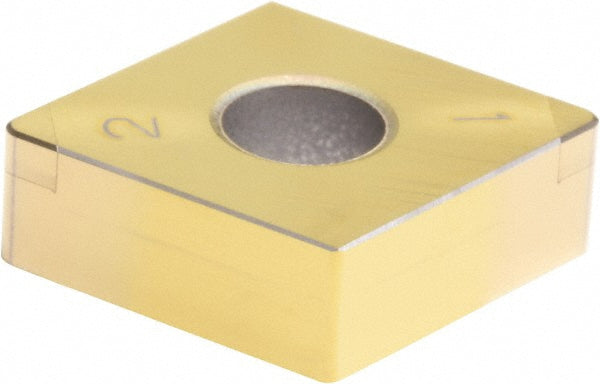

2NC-CNGA120408HS Polycrystalline Cubic Boron Nitride Insert, Grade BNC300, TiN - Sumitomo 16GBW1C
MFR# 16GBW1CISO/ANSI# 2NC-CNGA120408HSSeries CNG
$63.81List $81.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBNC300
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiN
Description
The Sumitomo 16GBW1C is a 2NC-CNGA120408HS polycrystalline cubic boron nitride indexable insert, grade BNC300, TiN coated. Suited for cast iron, hard material, superalloy.
Specifications
Ansi code2NCCNGA432HS
Chip breakerHS
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.0945
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code432
Insert style2NC-CNGA
Insert thickness in3/16
Iso code2NC-CNGA120408HS
Manufacturer gradeBNC300
Maximum depth of cut0.0150
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
