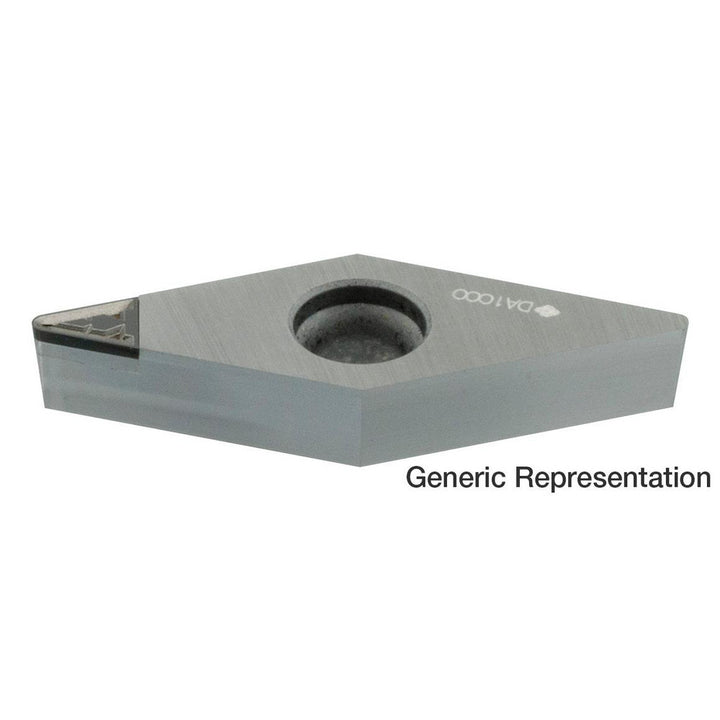

NF-VCMT110304N-GD PCD Insert, Grade DA1000 - Sumitomo 16HQEHA

Sumitomo

NF-VCMT110304N-GD PCD Insert, Grade DA1000 - Sumitomo 16HQEHA

MFR# 16HQEHAISO/ANSI# VCMT110304Cat# NF-VCMT221GD-DA1000Series V

$76.17List $91.34 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeDA1000
MaterialPCD

Description

The Sumitomo 16HQEHA is a NF-VCMT110304N-GD pcd indexable insert, grade DA1000. Suited for non-ferrous metal.

Specifications

Ansi insert codeVCMT221
Ansi size code221
Chip breakerGD
Clearance codeC
Coating processUncoated
Corner radius in1/64
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.1339
Insert materialPCD
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVCMT
Insert thickness in1/8
Iso codeNF-VCMT110304N-GD
Iso insert codeVCMT110304
Iso size code110304
Manufacturers catalog numberNF-VCMT221GD-DA1000
Manufacturer gradeDA1000
Material gradePCD
Multi use toolYes
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
