Sumitomo

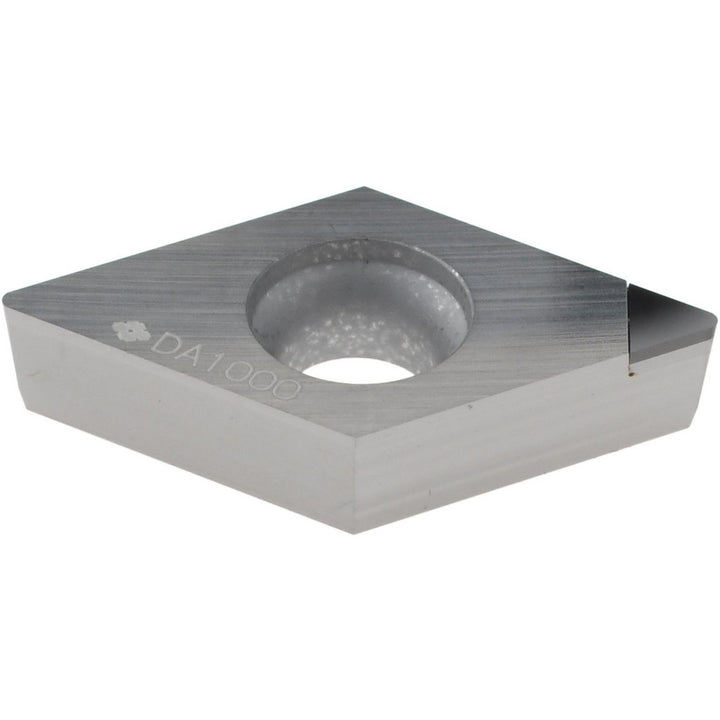

NF-DCGW11T304 PCD Insert, Grade DA1000 - Sumitomo 16HQW5V
MFR# 16HQW5VISO/ANSI# NF-DCGW11T304Cat# NFDCGA32.51DA1000Series D
$45.60List $54.67
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA1000
MaterialPCD
Description
The Sumitomo 16HQW5V is a NF-DCGW11T304 pcd indexable insert, grade DA1000. Suited for non-ferrous metal.
Specifications
Chip breakerA
Clearance codeC
Coating processUncoated
Corner radius in1/64
Full radiusNo
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.0945
Insert materialPCD
Insert shapeDiamond
Insert size code32.51
Insert styleDCGA
Insert thickness in5/32
Iso codeNF-DCGW11T304
Manufacturers catalog numberNFDCGA32.51DA1000
Manufacturer gradeDA1000
Material gradePCD
Multi use toolYes
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
