Sumitomo

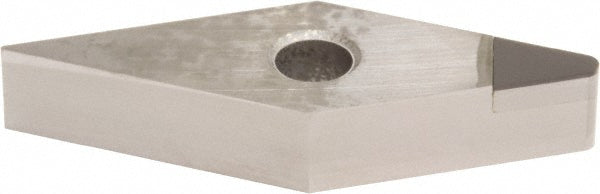

NF-VNMA160408 Polycrystalline Diamond Insert, Grade DA1000 - Sumitomo 16HQW67
MFR# 16HQW67ISO/ANSI# NF-VNMA160408Series V
$72.93List $87.45
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA1000
MaterialPolycrystalline Diamond
Description
The Sumitomo 16HQW67 is a NF-VNMA160408 polycrystalline diamond indexable insert, grade DA1000. Suited for non-ferrous metal.
Specifications
Ansi codeNFVNMA332
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.0748
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code332
Insert styleNF-VNMA
Insert thickness in3/16
Iso codeNF-VNMA160408
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakeNeutral
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
