Sumitomo

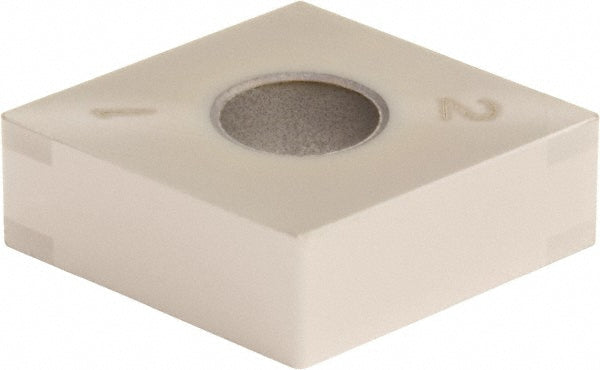

4NC-CNGA120408 Polycrystalline Cubic Boron Nitride Insert, Grade BNC500, TiC - Sumitomo 16JZDHG
MFR# 16JZDHGISO/ANSI# 4NC-CNGA120408Series C
$113.16List $145.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBNC500
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiC
Description
The Sumitomo 16JZDHG is a 4NC-CNGA120408 polycrystalline cubic boron nitride indexable insert, grade BNC500, TiC coated. Suited for cast iron.
Specifications
Ansi code4NCCNGA432
Chip breakerA
Clearance codeN
Coating finishTiC
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0945
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code432
Insert style4NC-CNGA
Insert thickness in3/16
Iso code4NC-CNGA120408
Manufacturer gradeBNC500
Maximum depth of cut0.0150
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
