Sumitomo

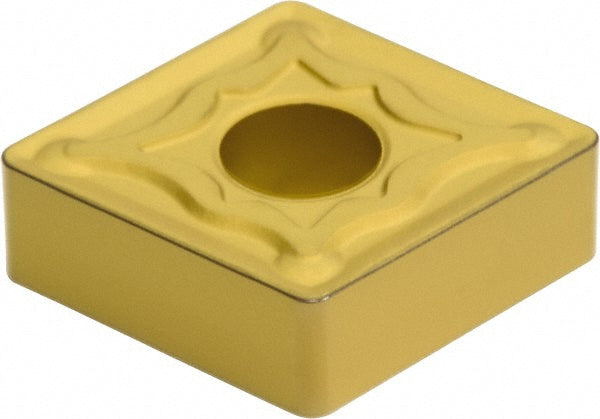

CNMG120408N-UX Solid Carbide Insert, Grade AC700G, TiC - Sumitomo 19DYAVH
MFR# 19DYAVHISO/ANSI# CNMG120408N-UXSeries CN
$12.31List $15.78
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC700G
MaterialSolid Carbide
CoatingTiC
Description
The Sumitomo 19DYAVH is a CNMG120408N-UX solid carbide indexable insert, grade AC700G, TiC coated. Suited for cast iron, steel.
Specifications
Ansi codeCNMG432EUX
Chip breakerEUX
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-UX
Manufacturer gradeAC700G
Primary workpiece materialCast Iron; Steel
RakeNeutral
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
