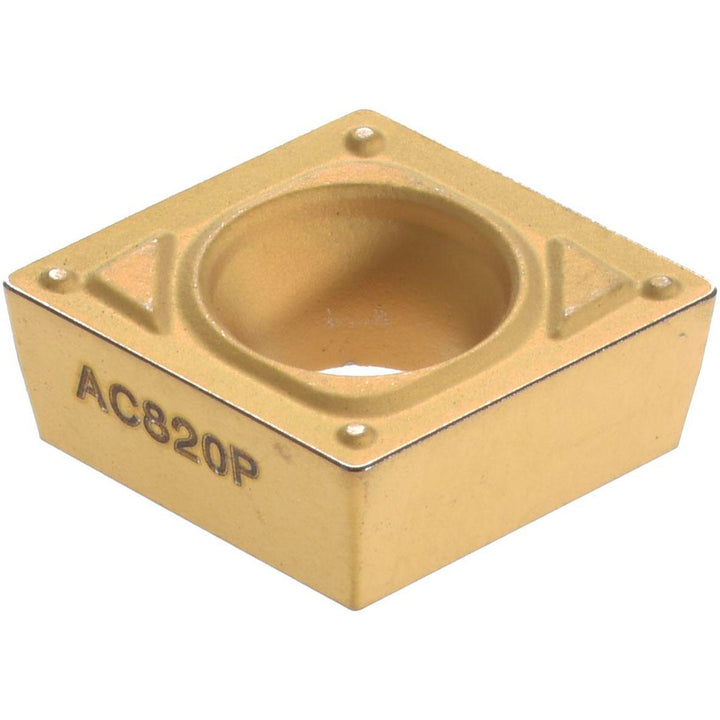

CCMT09T304N-SK Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJW1H

Sumitomo

CCMT09T304N-SK Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJW1H

MFR# 19RJW1HISO/ANSI# CCMT09T304Series CC

$11.20List $14.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC820P
MaterialCarbide
CoatingCoated

Description

The Sumitomo 19RJW1H is a CCMT09T304N-SK carbide indexable insert, grade AC820P, Coated coated.

Specifications

Ansi insert codeCCMT32.51
Ansi size code32.51
Chip breakerENK
Chip breaker operationFinishing
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304N-SK
Iso insert codeCCMT09T304
Iso size code09T304
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
RakePositive
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
