Sumitomo

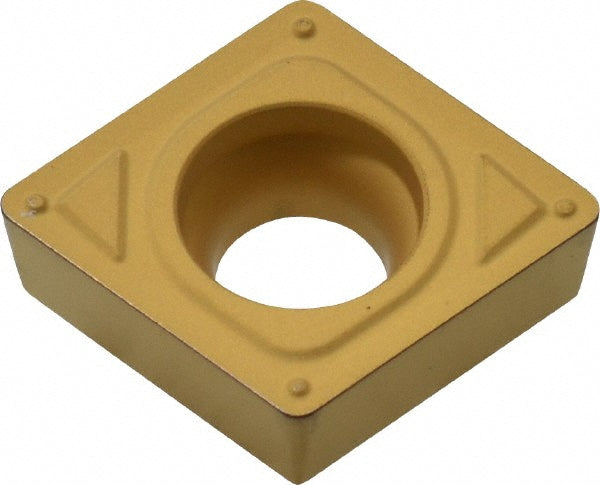

CCMT120408N-SK Solid Carbide Insert, Grade AC820P, Coated - Sumitomo 19RJW2H
MFR# 19RJW2HISO/ANSI# CCMT120408N-SKSeries CC
$13.06List $16.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 19RJW2H is a CCMT120408N-SK solid carbide indexable insert, grade AC820P, Coated coated. Suited for m, p.
Specifications
Ansi codeCCMT432ENK
Chip breakerENK
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.2170
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408N-SK
Manufacturer gradeAC820P
Material gradeC5A; C6; C7; C8
Primary workpiece materialM; P
RakePositive
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
