Sumitomo

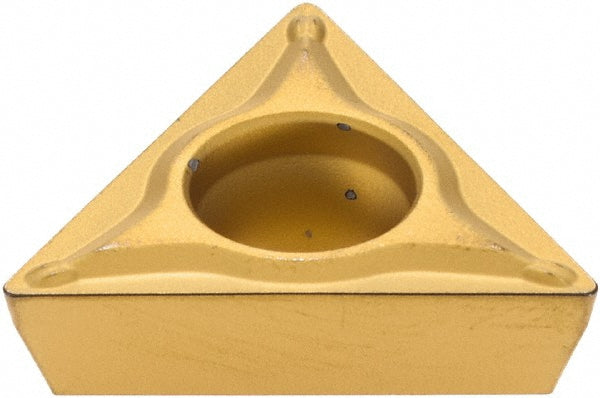

TPMT16T304N-SU Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJWCN
MFR# 19RJWCNISO/ANSI# TPMT16T304N-SUSeries TPMT
$12.49List $16.01
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJWCN is a TPMT16T304N-SU solid carbide indexable insert, grade AC820P, Al2O3 coated. Suited for steel.
Specifications
Ansi codeTPMT32.51ESU
Chip breakerESU
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1693
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code32.5
Insert styleTPMT
Insert thickness in5/32
Iso codeTPMT16T304N-SU
Manufacturer gradeAC820P
Primary workpiece materialSteel
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeM
