Sumitomo

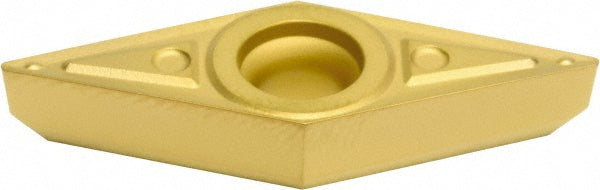

VCMT160404N-SK Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 19RJWEN
MFR# 19RJWENISO/ANSI# VCMT160404N-SKSeries VC
$23.27List $29.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 19RJWEN is a VCMT160404N-SK solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeVCMT331ENK
Chip breakerENK
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleVCMT
Insert thickness in3/16
Iso codeVCMT160404N-SK
Manufacturer gradeAC820P
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
