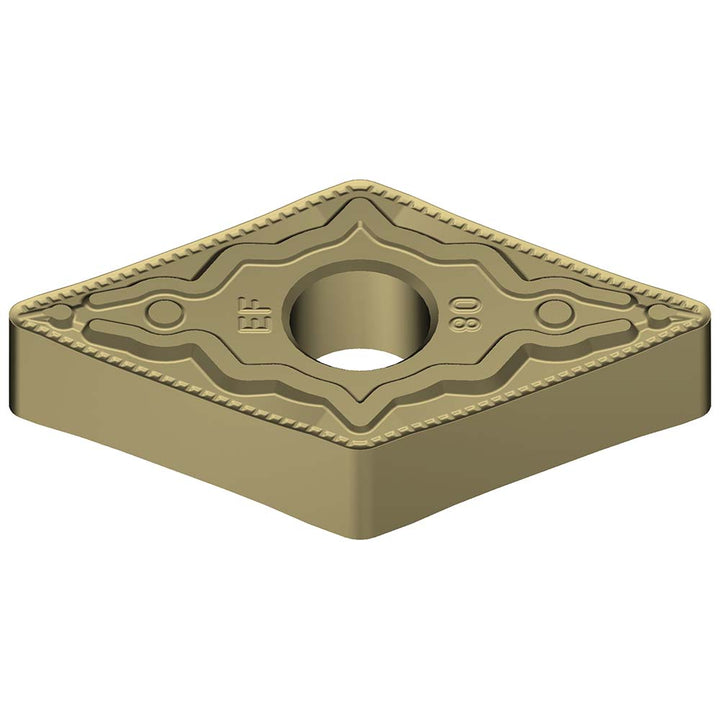

DNMG150404N-EF Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1CGQ

Sumitomo

DNMG150404N-EF Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1CGQ

MFR# 19W1CGQISO/ANSI# DNMG150404Cat# DNMG431EEF-AC8020PSeries AC8020P

$17.51List $22.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC8020P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19W1CGQ is a DNMG150404N-EF carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.

Specifications

Ansi insert codeDNMG431
Ansi size code431
Chip breakerEEF
Chip breaker operationFinishing
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0157
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness0.1874
Iso codeDNMG150404N-EF
Iso insert codeDNMG150404
Iso size code150404
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG431EEF-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
Tolerance codeM
