Titan USA

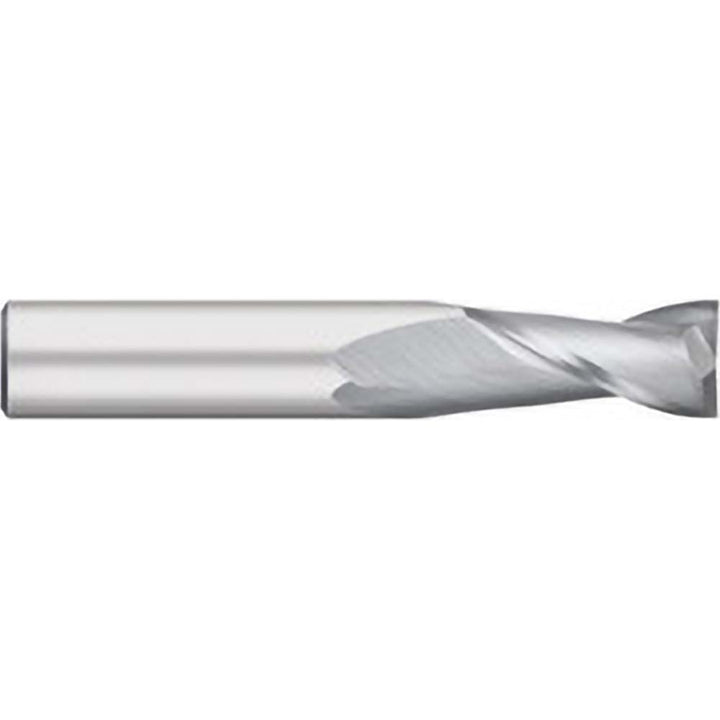

15/64" 2-Flute Solid Carbide Square End Mill - Titan USA TC10015

MFR# TC10015Series General Purpose End Mills - Carbide - 2 Flute - Square - 30 Helix

$22.29List $28.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter15/64

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Titan USA TC10015 is a 15/64 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, high-temp alloy. 3/4 length of cut, 2-1/2 overall length. Series General Purpose End Mills - Carbide - 2 Flute - Square - 30 Helix.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/4

Material gradeMicrograin

Mill diameter in15/64

Number of flutes2

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy

Shank diameter in1/4

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
