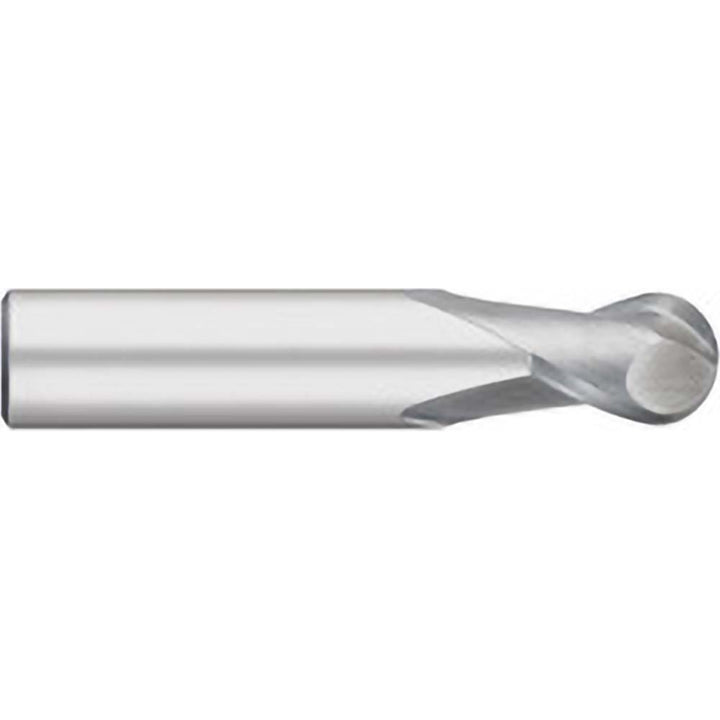

1/8" 2-Flute Solid Carbide Ball End Mill - Titan USA TC10308

MFR# TC10308Series Carbide - 2 Flute - Ball - 30 Helix, General Purpose End Mills

$10.55List $13.53 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Titan USA TC10308 is a 1/8 2-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1/4 length of cut, 1-1/2 overall length. Series Carbide - 2 Flute - Ball - 30 Helix, General Purpose End Mills.

Specifications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in1/4

Length typeStandard

Manufacturers catalog numberTC10308

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/8

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.0625

Number of flutes2

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length in1/4

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
