Titan USA

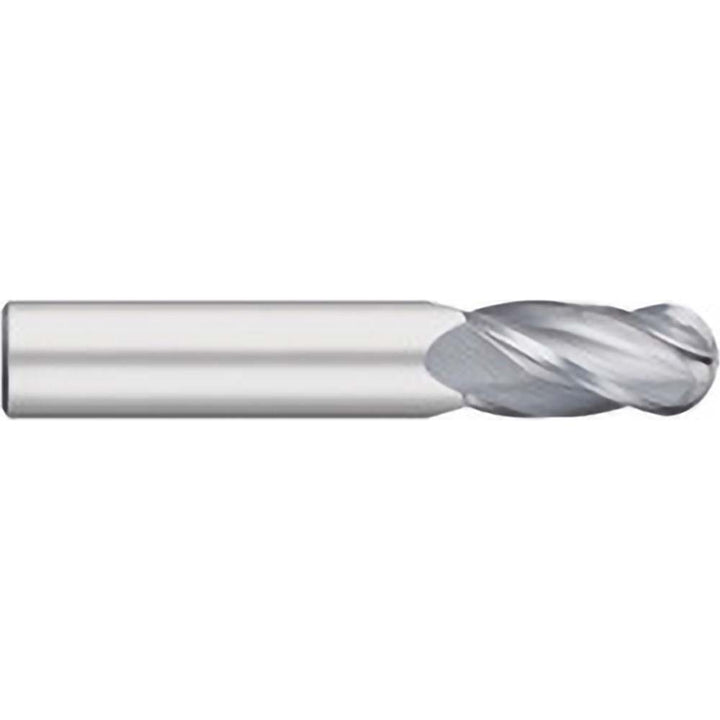

1/8" 4-Flute Solid Carbide Ball End Mill - Titan USA TC11508
MFR# TC11508Series Carbide - 4 Flute - Ball - 30 Helix, General Purpose End Mills
$12.52List $16.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Titan USA TC11508 is a 1/8 4-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. 1/2 length of cut, 1-1/2 overall length. Series Carbide - 4 Flute - Ball - 30 Helix, General Purpose End Mills.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in1/2
Length typeStandard
Manufacturers catalog numberTC11508
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.0625
Number of flutes4
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Reach length in1/2
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
