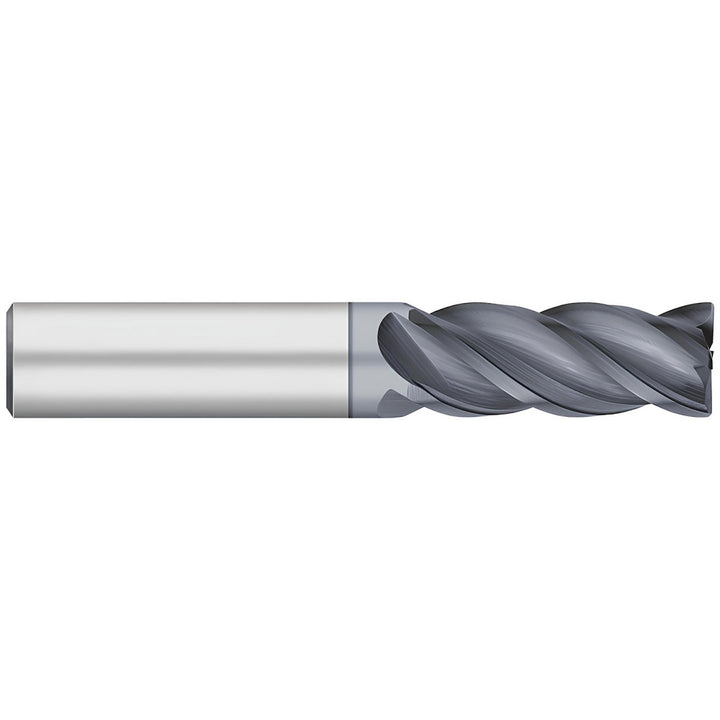

7/16" 4-Flute Solid Carbide Corner Radius End Mill, ALCRO-MAX - Titan USA TC22663
MFR# TC22663Series TC
$63.90List $81.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter7/16
Flutes4
MaterialSolid Carbide
CoatingALCRO-MAX
Description
The Titan USA TC22663 is a 7/16 4-flute Solid Carbide corner radius end mill with a ALCRO-MAX finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 1 length of cut, 2-3/4 overall length. Series TC.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishALCRO-MAX
Coolant throughNo
Corner radius0.0600
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleHigh
Length of cut in1
Length typeRegular
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing & Finishing
Mill diameter in7/16
Mill diameter tolerance-0.0020 to 0.0000 in
Number of flutes4
Overall length in2-3/4
PitchNormal
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in1
Shank diameter in7/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
