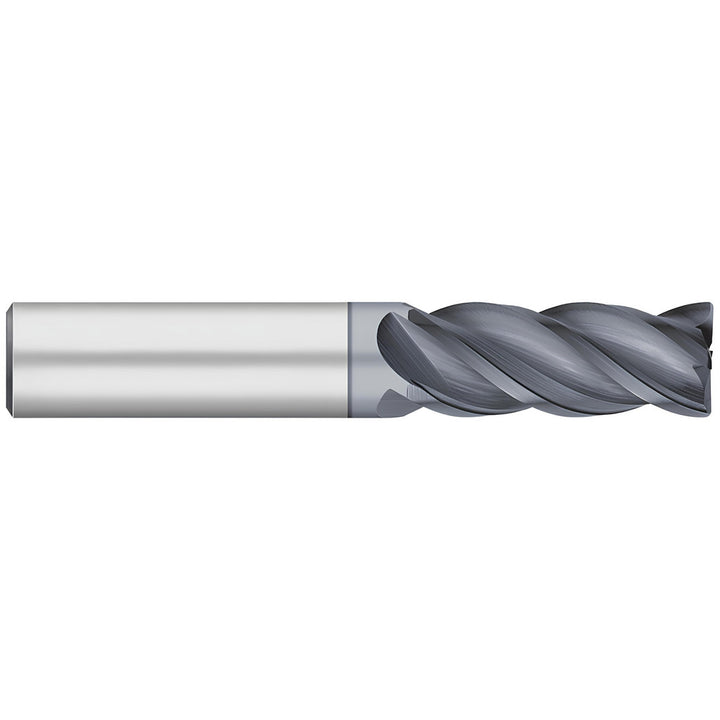

1/2" 4-Flute Solid Carbide Corner Radius End Mill, ALCRO-MAX - Titan USA TC23847

Titan USA

1/2" 4-Flute Solid Carbide Corner Radius End Mill, ALCRO-MAX - Titan USA TC23847

MFR# TC23847Series TC

$110.81List $142.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingALCRO-MAX

Description

The Titan USA TC23847 is a 1/2 4-flute Solid Carbide corner radius end mill with a ALCRO-MAX finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 2 length of cut, 4 overall length. Series TC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishALCRO-MAX
Coolant throughNo
Corner radius0.0600
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleHigh
Length of cut in2
Length typeLong
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance-0.0020 to 0.0000 in
Number of flutes4
Overall length in4
PitchNormal
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in2
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
