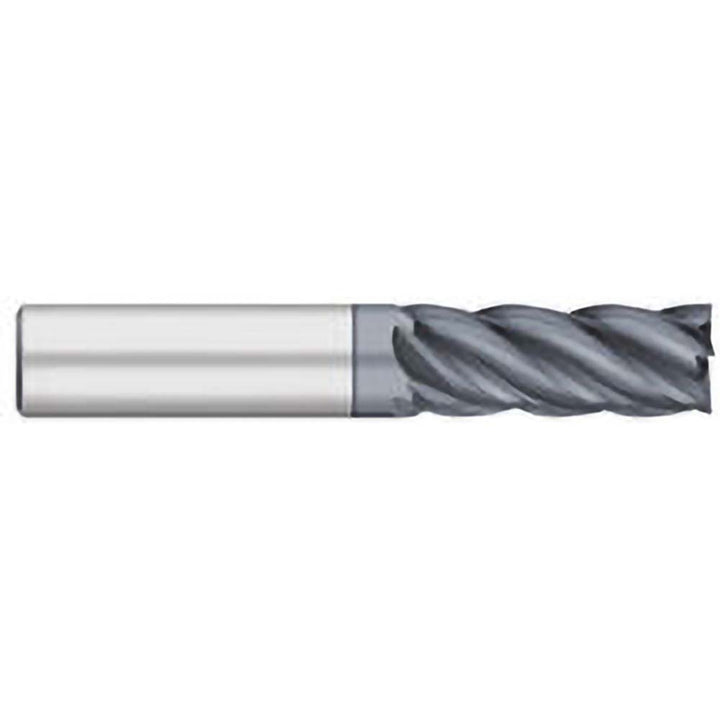

1/2" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC25842

Titan USA

1/2" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC25842

MFR# TC25842

$83.07List $106.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingALCRO-MAX

Description

The Titan USA TC25842 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a ALCRO-MAX finish for longer tool life. 1 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishALCRO-MAX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle38
Length of cut in1
Length of cut range1.0000 - 1.2500
Material gradeMicrograin
Mill diameter in1/2
Number of flutes5
Overall length in3
Shank diameter in1/2
Variable helixNo
Variable indexYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
