Titan USA

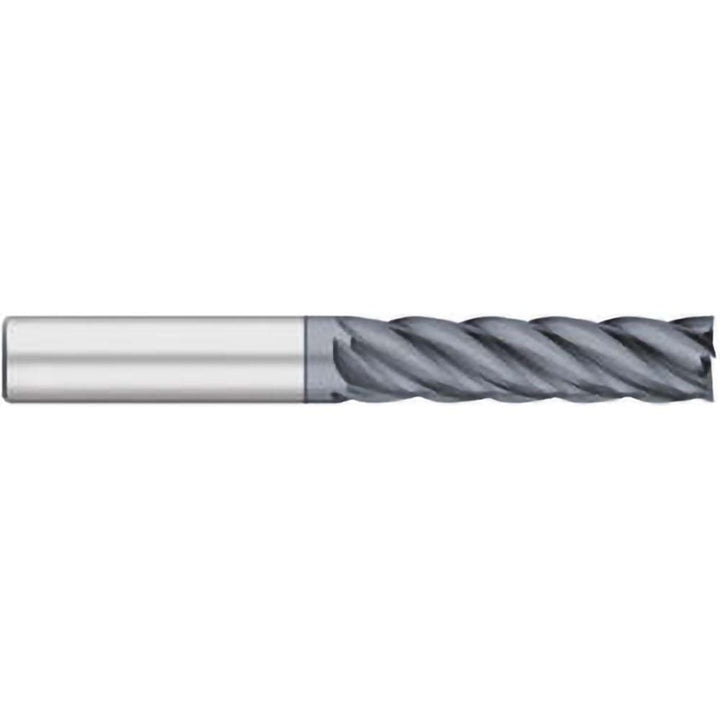

5/16" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC25890

MFR# TC25890

$51.51List $66.06 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes5

MaterialSolid Carbide

CoatingALCRO-MAX

Description

The Titan USA TC25890 is a 5/16 5-flute Solid Carbide (Micrograin) square end mill with a ALCRO-MAX finish for longer tool life. 1-1/8 length of cut, 3 overall length.

Specifications

CentercuttingYes

Coating finishALCRO-MAX

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle38

Length of cut in1-1/8

Length of cut range1.0000 - 1.2500

Material gradeMicrograin

Mill diameter in5/16

Number of flutes5

Overall length in3

Shank diameter in5/16

Variable helixNo

Variable indexYes
