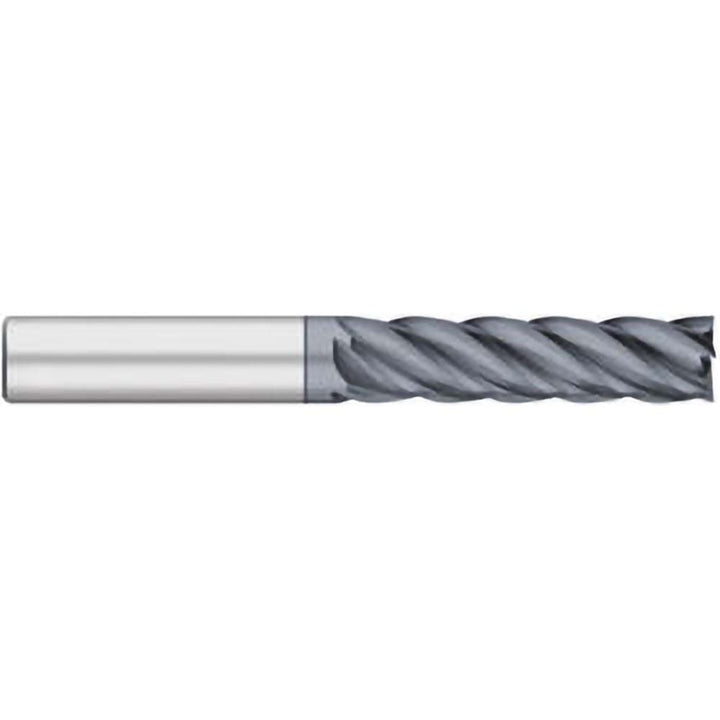

5/8" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC25898

MFR# TC25898

$223.76List $286.99 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingALCRO-MAX

Description

The Titan USA TC25898 is a 5/8 5-flute Solid Carbide (Micrograin) square end mill with a ALCRO-MAX finish for longer tool life. 2-1/4 length of cut, 5 overall length.

Specifications

CentercuttingYes

Coating finishALCRO-MAX

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle38

Length of cut in2-1/4

Length of cut range2.0000+

Material gradeMicrograin

Mill diameter in5/8

Number of flutes5

Overall length in5

Shank diameter in5/8

Variable helixNo

Variable indexYes
