Titan USA

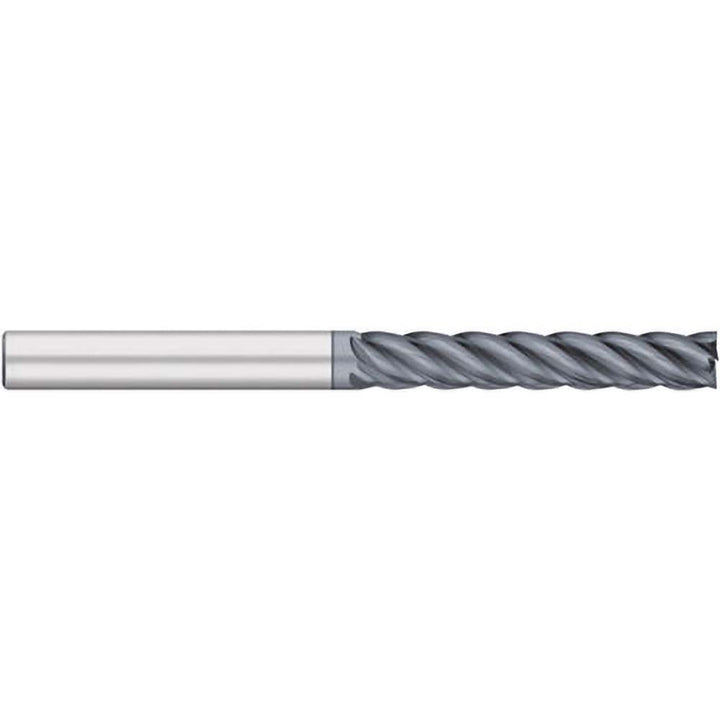

1/4" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - Titan USA TC25942

MFR# TC25942

$44.74List $57.37 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingALCRO-MAX

Description

The Titan USA TC25942 is a 1/4 5-flute Solid Carbide (Micrograin) square end mill with a ALCRO-MAX finish for longer tool life. 1-1/2 length of cut, 4 overall length.

Specifications

CentercuttingYes

Coating finishALCRO-MAX

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle38

Length of cut in1-1/2

Length of cut range1.5000 - 2.0000

Material gradeMicrograin

Mill diameter in1/4

Number of flutes5

Overall length in4

Shank diameter in1/4

Variable helixNo

Variable indexYes
