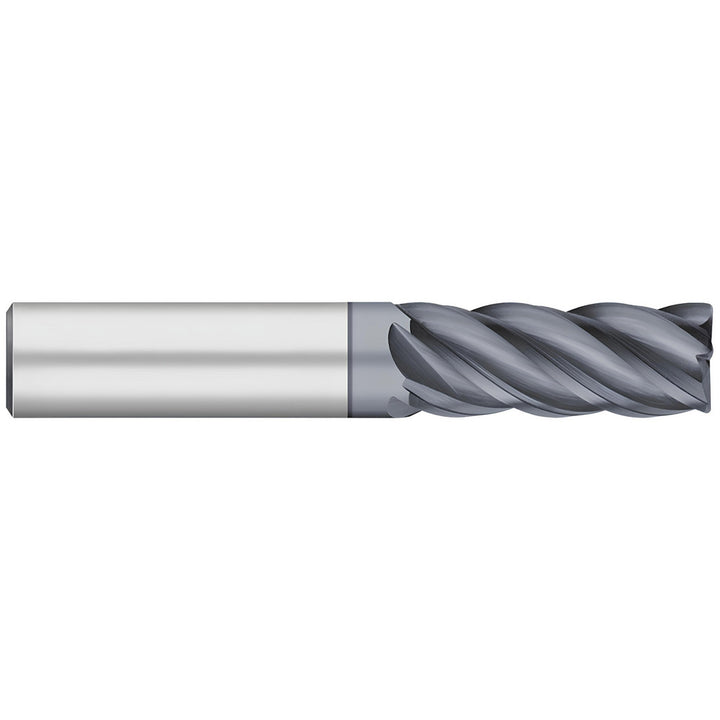

3/8in" 5-Flute Solid Carbide Corner Radius End Mill, ALCRO-MAX - Titan USA TC25988

Titan USA

3/8in" 5-Flute Solid Carbide Corner Radius End Mill, ALCRO-MAX - Titan USA TC25988

MFR# TC25988Series TC

$47.65List $61.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes5
MaterialSolid Carbide
CoatingALCRO-MAX

Description

The Titan USA TC25988 is a 3/8in 5-flute Solid Carbide corner radius end mill with a ALCRO-MAX finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 1/2in length of cut, 2in overall length. Series TC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishALCRO-MAX
Coolant throughNo
Corner radius0.0150
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1/2in
Length typeLong
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes5
Overall length in2in
PitchNormal
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in1/2
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
