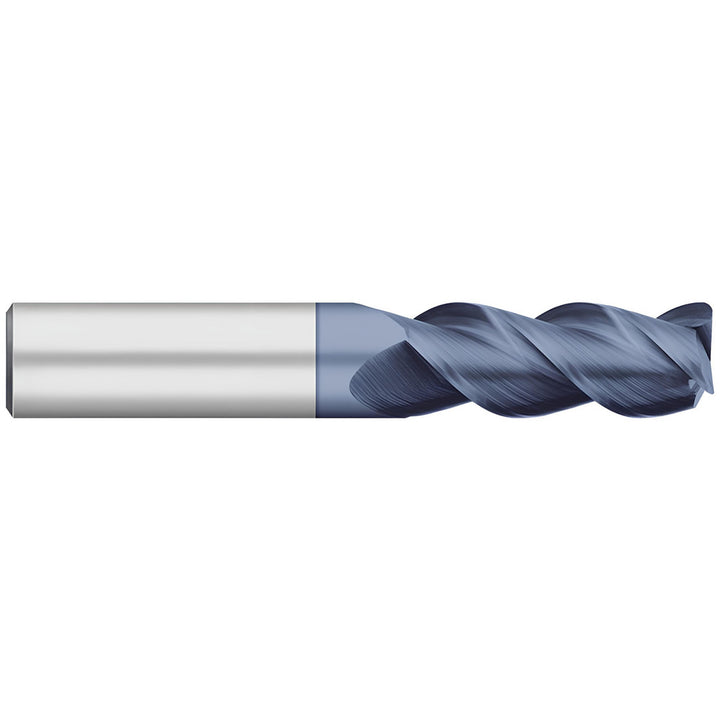

5/16in" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC49720
MFR# TC49720Series TC
$38.73List $49.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16in
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The Titan USA TC49720 is a 5/16in 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 13/16in length of cut, 2-1/2in overall length. Series TC.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in13/16in
Length typeRegular
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing
Mill diameter in5/16in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes3
Overall length in2-1/2in
PitchCoarse
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in13/16
Shank diameter in5/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
