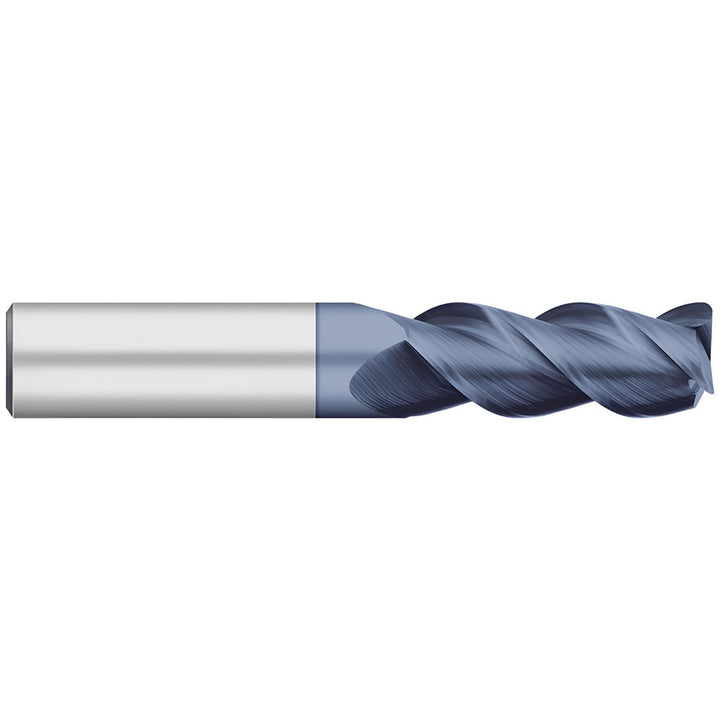

3/8in" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC49724
MFR# TC49724Series TC
$52.27List $67.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8in
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The Titan USA TC49724 is a 3/8in 3-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 1in length of cut, 2-1/2in overall length. Series TC.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1in
Length typeRegular
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing
Mill diameter in3/8in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes3
Overall length in2-1/2in
PitchCoarse
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in1
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
