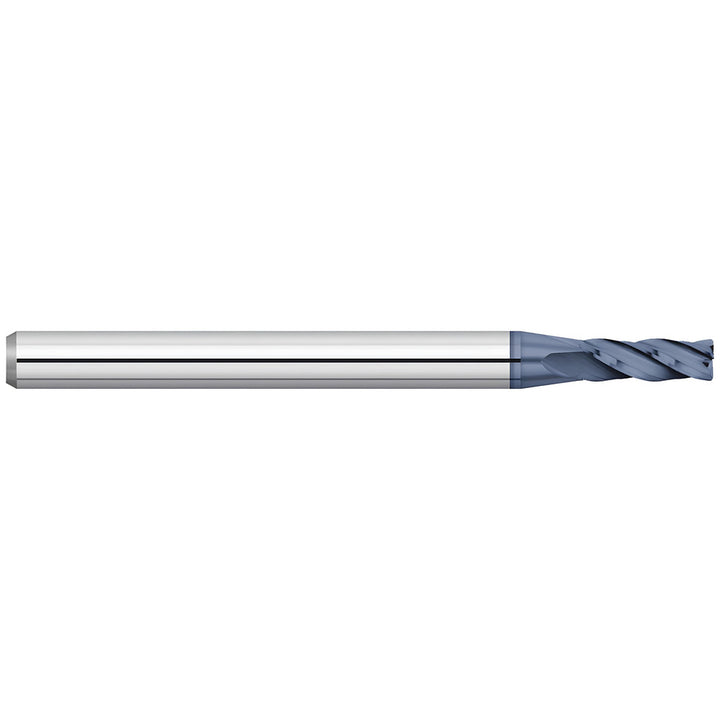

0.0200in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC50806
MFR# TC50806Series TC
$57.03List $73.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Titan USA TC50806 is a 0.0200in 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 1-1/2in overall length. Series TC.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0050
Corner radius tolerance-0.0002 to 0.0002 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut1.4961in
Length typeRegular
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing & Finishing
Mill diameter0.0200in
Mill diameter tolerance-0.0005/0.0005 in
Number of flutes4
Overall length in1-1/2in
PitchNormal
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length0.0600
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
