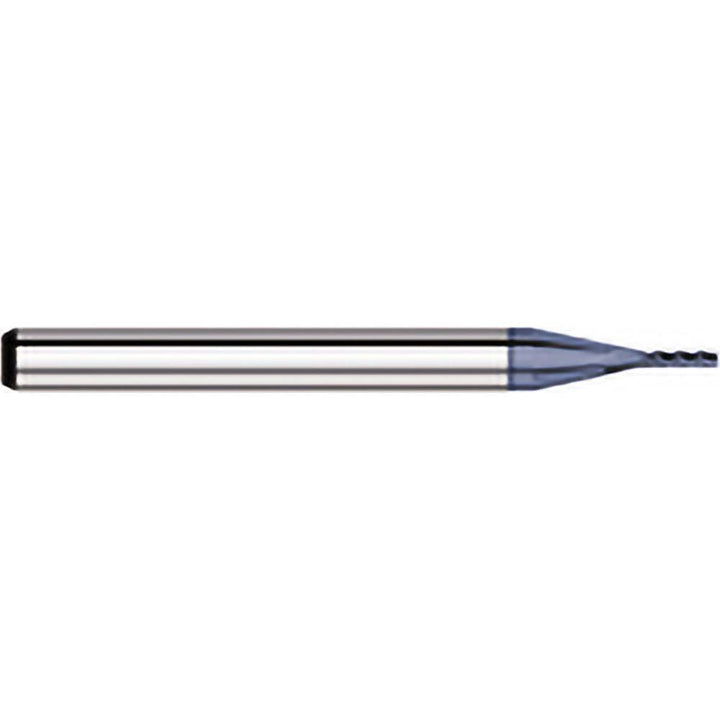

0.1010" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC58301

Titan USA

0.1010" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC58301

MFR# TC58301

$21.45List $27.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Titan USA TC58301 is a 0.1010 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.303 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut0.303
Length of cut range0.3000 - 0.5000
Material gradeMicrograin
Mill diameter0.1010
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
