Titan USA

7/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC58309

MFR# TC58309

$21.45List $27.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter7/64

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

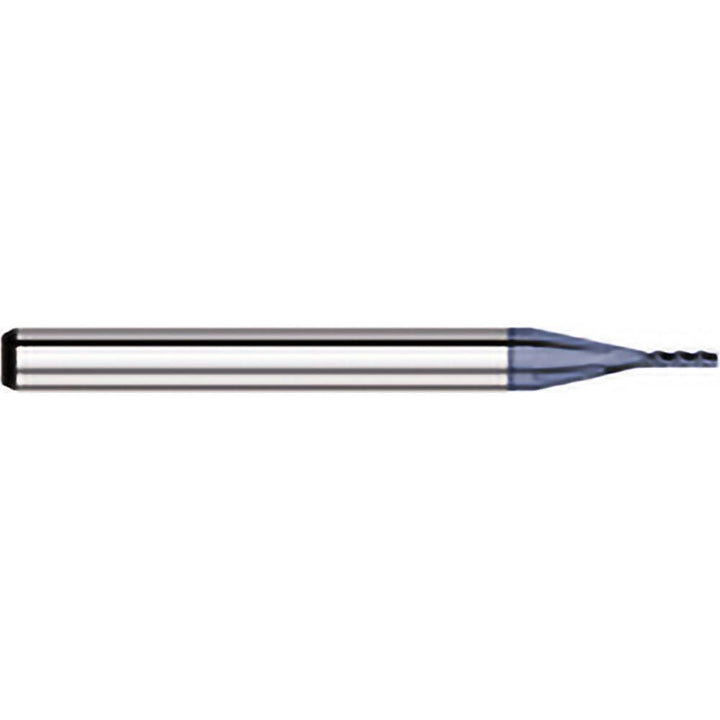

The Titan USA TC58309 is a 7/64 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.327 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle30

Length of cut0.327

Length of cut range0.3000 - 0.5000

Material gradeMicrograin

Mill diameter in7/64

Number of flutes4

Overall length in1-1/2

Shank diameter in1/8

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
