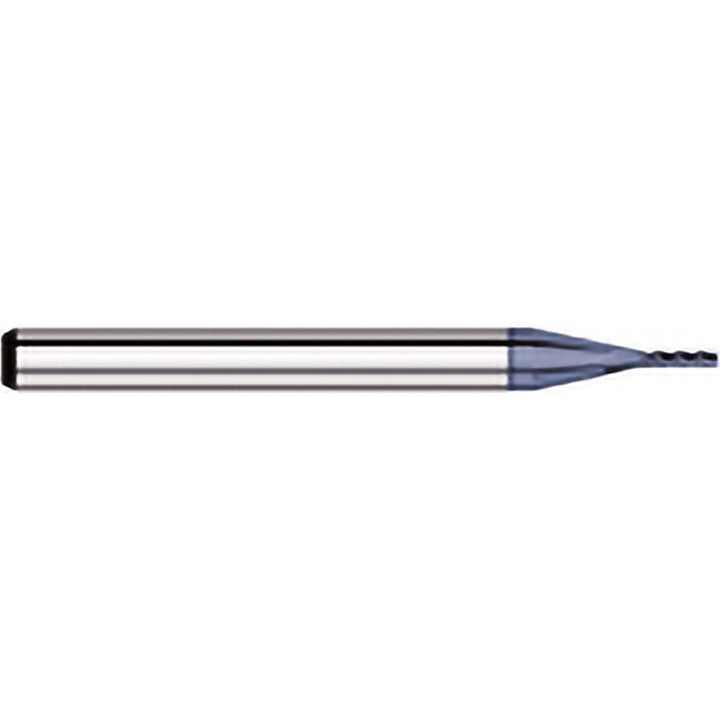

0.1100" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC58310

Titan USA

0.1100" 4-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC58310

MFR# TC58310

$21.45List $27.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Titan USA TC58310 is a 0.1100 4-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.33 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut0.33
Length of cut range0.3000 - 0.5000
Material gradeMicrograin
Mill diameter0.1100
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Harvey Tool7/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 73110-C3 $27.98 Harvey Tool7/64" 2-Flute Solid Carbide Square End Mill - Harvey Tool 72110 $20.83 SGS0.1100" 2-Flute Solid Carbide Square End Mill, AlTiN - SGS 02399 $18.69 Harvey Tool7/64" 4-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 50302-C3 $27.98
