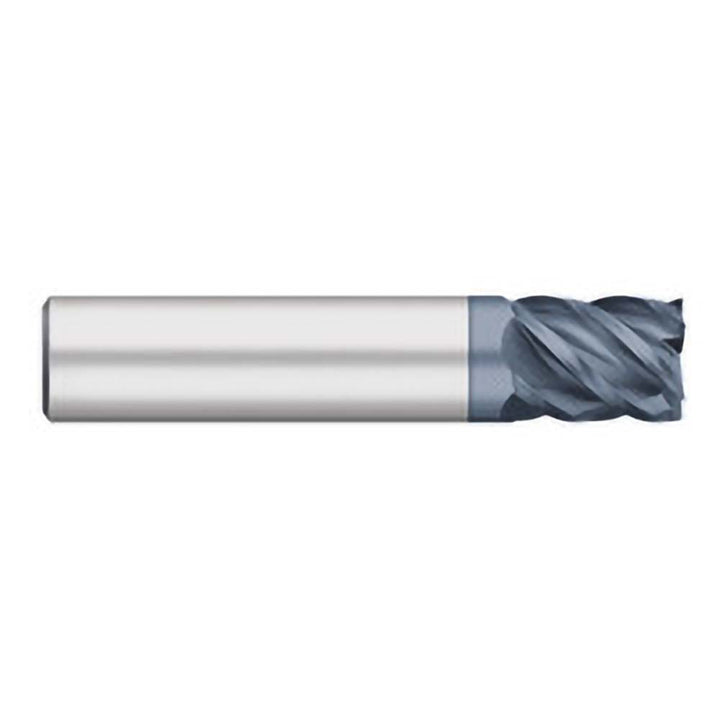

1/4" 5-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC61516

Titan USA

1/4" 5-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC61516

MFR# TC61516

$22.00List $28.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Titan USA TC61516 is a 1/4 5-flute Solid Carbide (Micrograin) square end mill. 1/2 length of cut, 2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle45
Length of cut in1/2
Length of cut range0.5000 - 0.6000
Material gradeMicrograin
Mill diameter in1/4
Number of flutes5
Overall length in2
Shank diameter in1/4
Variable helixNo
Variable indexNo
