Titan USA

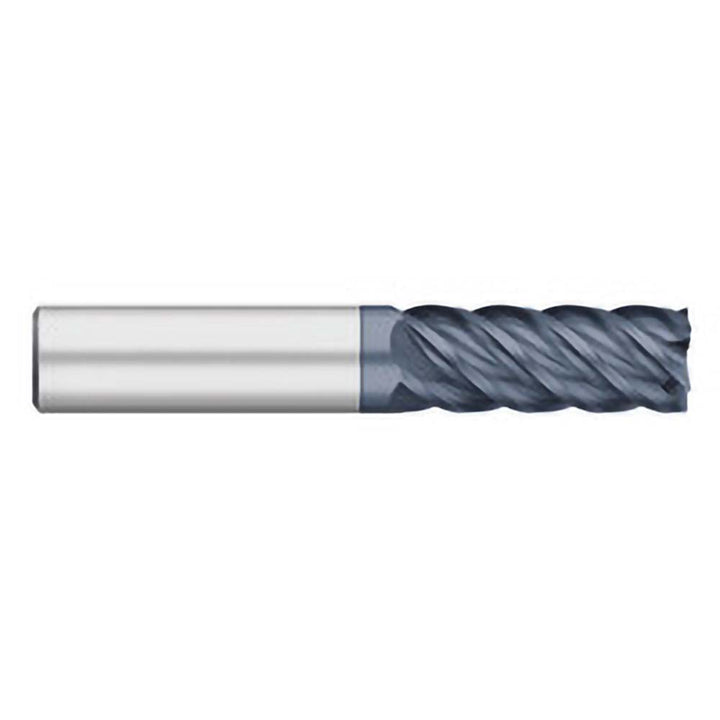

1/4" 5-Flute Solid Carbide Square End Mill, AlTiN - Titan USA TC61916

MFR# TC61916

$30.10List $38.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Titan USA TC61916 is a 1/4 5-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 3/4 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle45

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Material gradeMicrograin

Mill diameter in1/4

Number of flutes5

Overall length in2-1/2

Shank diameter in1/4

Variable helixNo

Variable indexNo
