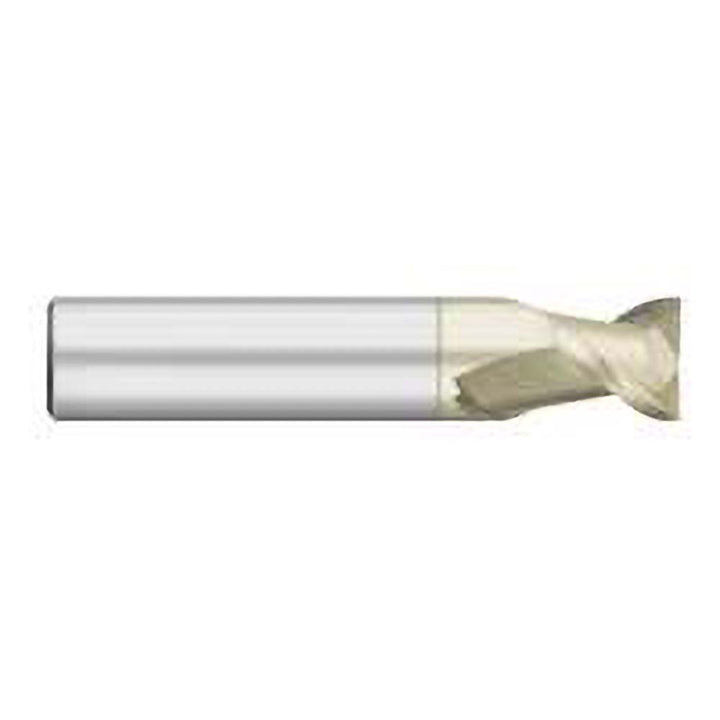

3/16" 2-Flute Solid Carbide Square End Mill, ZrN - Titan USA TC62102

MFR# TC62102

$22.13List $28.38 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialSolid Carbide

CoatingZrN

Description

The Titan USA TC62102 is a 3/16 2-flute Solid Carbide (Micrograin) square end mill with a ZrN finish for longer tool life. 3/8 length of cut, 2 overall length.

Specifications

CentercuttingYes

Coating finishZrN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle45

Length of cut in3/8

Length of cut range0.3000 - 0.5000

Material gradeMicrograin

Mill diameter in3/16

Number of flutes2

Overall length in2

Shank diameter in3/16

Variable helixNo

Variable indexNo
