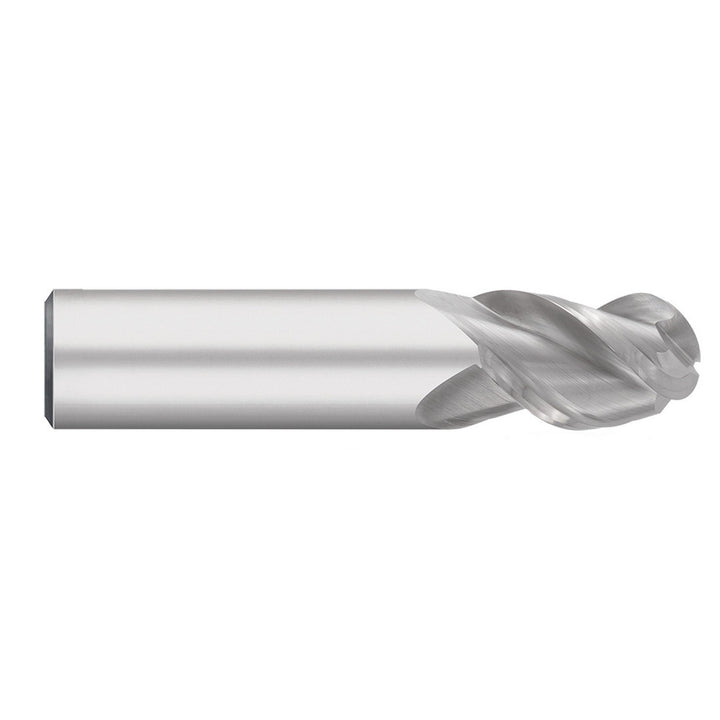

3/16in" 3-Flute Solid Carbide Ball End Mill, ZrN - Titan USA TC63146
MFR# TC63146Series Carbide - For Aluminum - 3 Flute - Ball - 45 Helix, Milling
$27.88List $34.07
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16in
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The Titan USA TC63146 is a 3/16in 3-flute Solid Carbide (Carbide) ball end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 5/8in length of cut, 2in overall length. Series Carbide - For Aluminum - 3 Flute - Ball - 45 Helix, Milling.
Specifications
ChipbreakerNo
Coating finishZrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Helix styleHigh
Length of cut in5/8in
Length typeStandard
Manufacturers catalog numberTC63146
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.0938
Number of flutes3
Overall length in2in
Primary workpiece materialNon-Ferrous Metal
Reach length in5/8
Shank diameter in3/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
