Titan USA

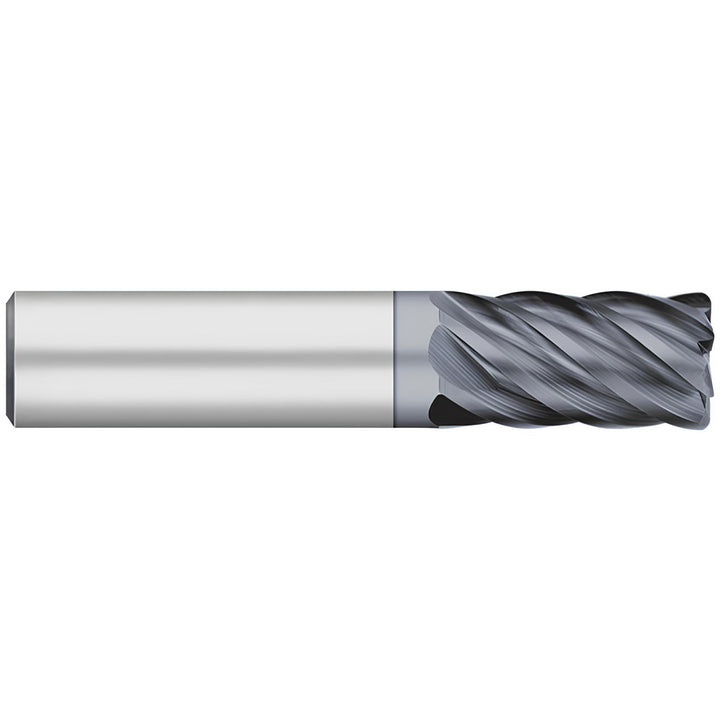

3/4" 6-Flute Solid Carbide Corner Radius End Mill, ALCRO-MAX - Titan USA TC64436

MFR# TC64436Series TC

$207.60List $266.26 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes6

MaterialSolid Carbide

CoatingALCRO-MAX

Description

The Titan USA TC64436 is a 3/4 6-flute Solid Carbide corner radius end mill with a ALCRO-MAX finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 1 length of cut, 3 overall length. Series TC.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishALCRO-MAX

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0010 to 0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in1

Length typeStub

Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel

Material removal typeFinishing

Mill diameter in3/4

Mill diameter tolerance-0.0020 to 0.0000 in

Number of flutes6

Overall length in3

PitchClose

Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron

Reach length in1

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
