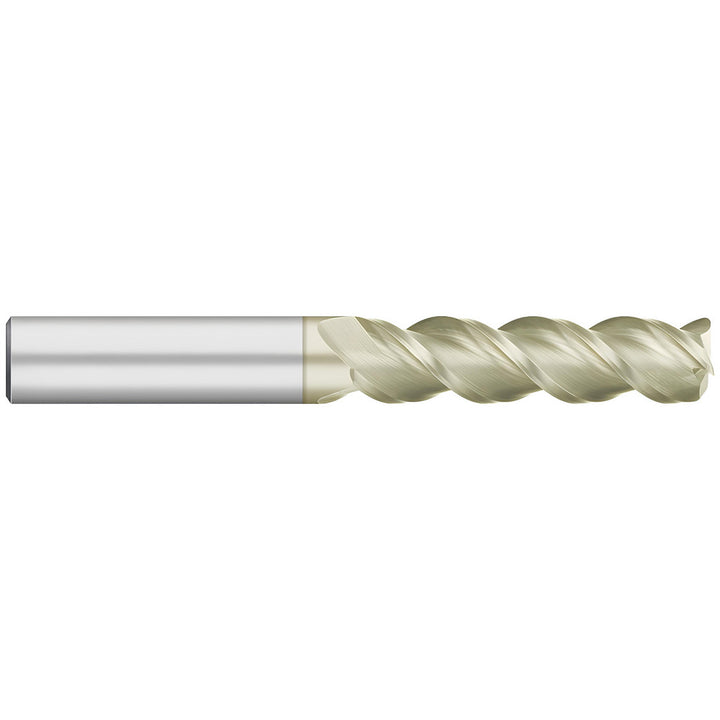

1/4in" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC66516

Titan USA

1/4in" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC66516

MFR# TC66516Series TC

$61.97List $79.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes3
MaterialSolid Carbide
CoatingZrN

Description

The Titan USA TC66516 is a 1/4in 3-flute Solid Carbide corner radius end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 1-1/4in length of cut, 3in overall length. Series TC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishZrN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in1-1/4in
Length typeLong
Material applicationNon-Ferrous Metal; Aluminum; Brass; Bronze
Material removal typeRoughing
Mill diameter in1/4in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes3
Overall length in3in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-1/4
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
