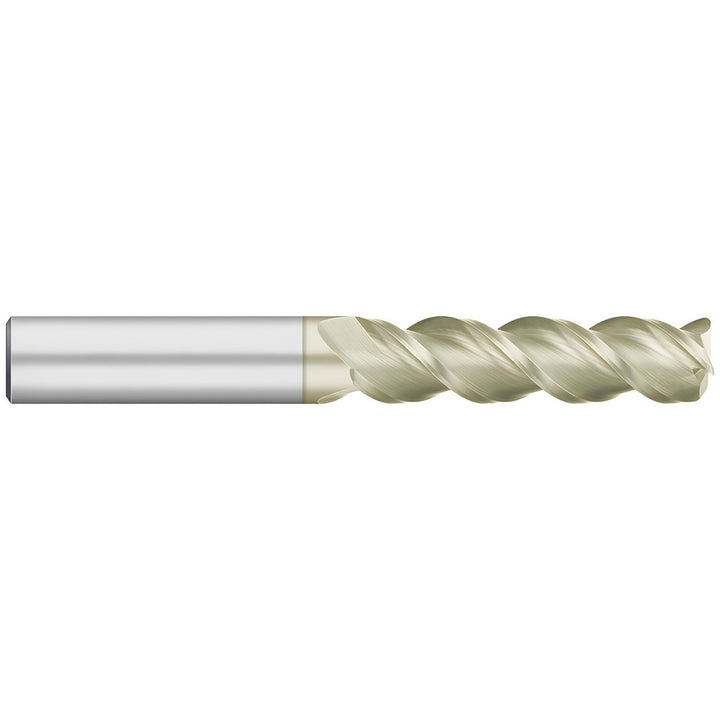

1/2in" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC66532

Titan USA

1/2in" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC66532

MFR# TC66532Series TC

$152.71List $195.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes3
MaterialSolid Carbide
CoatingZrN

Description

The Titan USA TC66532 is a 1/2in 3-flute Solid Carbide corner radius end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 2in length of cut, 4in overall length. Series TC.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishZrN
Coolant throughNo
Corner radius0.0400
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in2in
Length typeLong
Material applicationNon-Ferrous Metal; Aluminum; Brass; Bronze
Material removal typeRoughing
Mill diameter in1/2in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes3
Overall length in4in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in2
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
