Titan USA

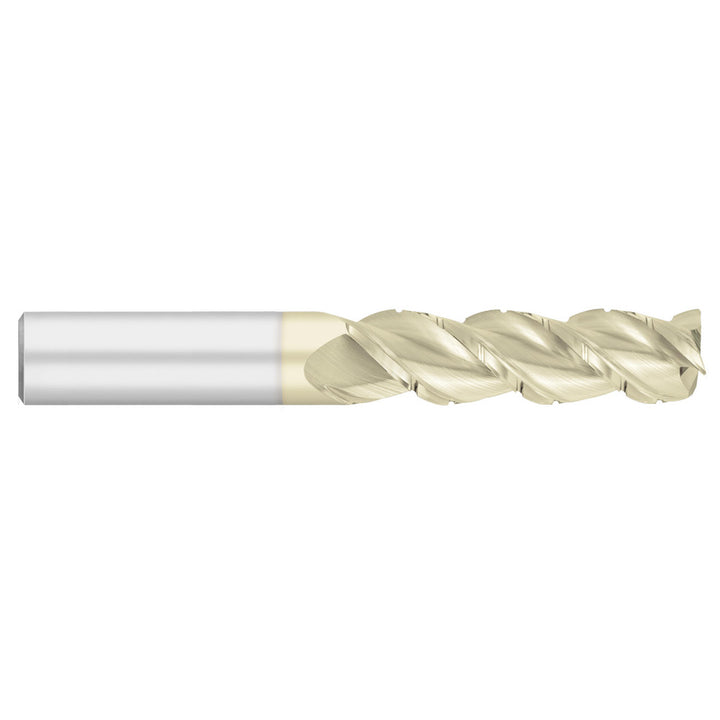

5/16" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC67428
MFR# TC67428Series General Purpose End Mills - Carbide - Aluminum - 3 Flute - Corner Radius - 45 Helix - Chipbreaker
$92.46List $118.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The Titan USA TC67428 is a 5/16 3-flute Solid Carbide corner radius end mill with a ZrN finish for longer tool life. 1-3/8 length of cut, 3 overall length. Series General Purpose End Mills - Carbide - Aluminum - 3 Flute - Corner Radius - 45 Helix - Chipbreaker.
Specifications
CentercuttingYes
ChipbreakerYes
Coating finishZrN
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Length of cut in1-3/8
Material removal typeFinishing
Mill diameter in5/16
Number of flutes3
Overall length in3
Shank diameter in5/16
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
