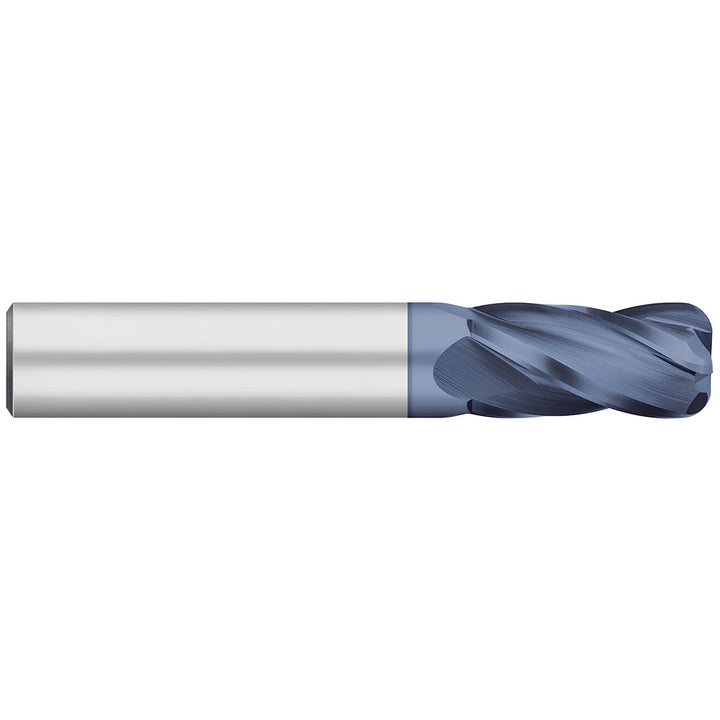

3/8in" 4-Flute Solid Carbide Corner Radius End Mill - Titan USA TC74046
MFR# TC74046Series TC
$30.05List $36.72
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Titan USA TC74046 is a 3/8in 4-flute Solid Carbide corner radius end mill. 1in length of cut, 2-1/2in overall length. Series TC.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.1250
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1in
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in2-1/2in
PitchNormal
Reach length in1
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
