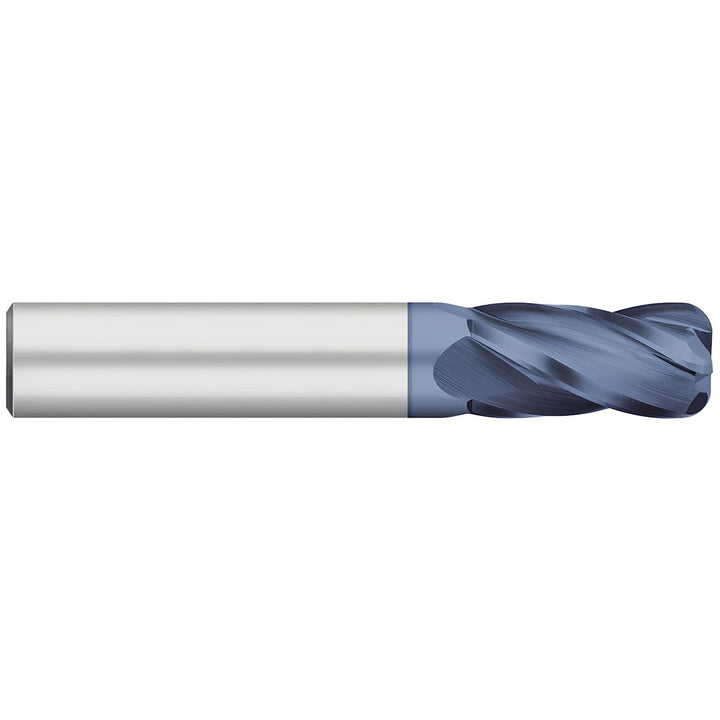

3/16in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC74605

Titan USA

3/16in" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Titan USA TC74605

MFR# TC74605Series TC

$30.53List $39.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Titan USA TC74605 is a 3/16in 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for superalloys & titanium, stainless steel, cast iron. 1-1/8in length of cut, 3in overall length. Series TC.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-1/8in
Length typeExtra Long
Material applicationFerrous Metal; High-Temperature Alloy; Stainless Steel; Alloy Steel; Titanium Alloy; Inconel
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes4
Overall length in3in
PitchNormal
Primary workpiece materialSuperalloys & Titanium; Stainless Steel; Cast Iron
Reach length in1-1/8
Shank diameter in3/16in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
